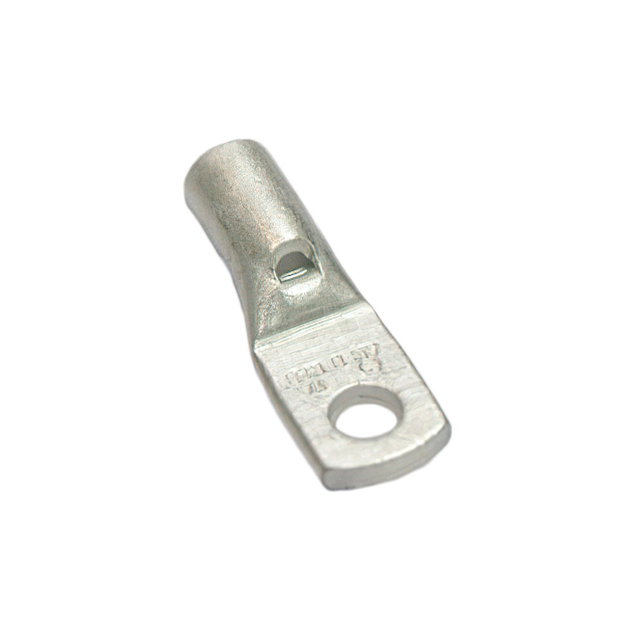

YAV8CL
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 8AWG,
Deep-Dive with AI
Search across all available documentation for this part.
YAV8CL
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 8AWG,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YAV8CL |
|---|---|
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall [x] | 1.15 in |
| Length - Overall [x] | 29.21 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud, 10 Stud, 9 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [x] | 10.41 mm |
| Width - Outer Edges [x] | 0.41 " |
| Wire Gauge | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
YAV8CL
Ring Terminal Connector 8, 9, 10 Stud Circular 8 AWG Crimp
Documents
Technical documentation and resources
No documents available
