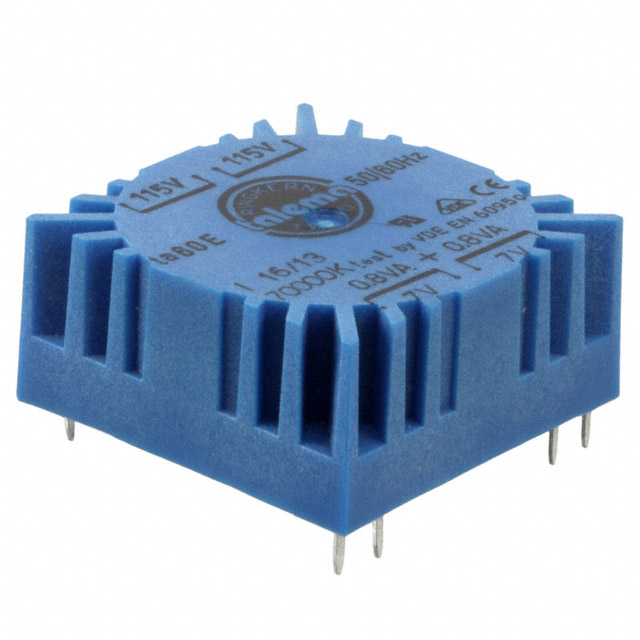

70004K
ActiveTalema Group LLC
PWR XFMR TOROIDAL 1.6VA TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
70004K
ActiveTalema Group LLC
PWR XFMR TOROIDAL 1.6VA TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 70004K |
|---|---|
| Center Tap | False |
| Current - Output (Max) [custom] | 88 mA |
| Current - Output (Max) [custom] | 44 mA |
| Height - Seated (Max) [Max] [z] | 18.5 mm |
| Mounting Type | Through Hole |
| Power - Max [Max] | 1.6 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [x] | 39.6 mm |
| Size / Dimension [y] | 39.6 mm |
| Termination Style | PC Pin |
| Type | Toroidal |
| Voltage - Isolation | 4000 Vrms |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) | 18 V, 36 V |
| Weight | 0.157 lb |
| Weight | 71.21 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 180 | $ 13.67 | |
Description
General part information
70004K
PWR XFMR TOROIDAL 1.6VA TH
Documents
Technical documentation and resources
