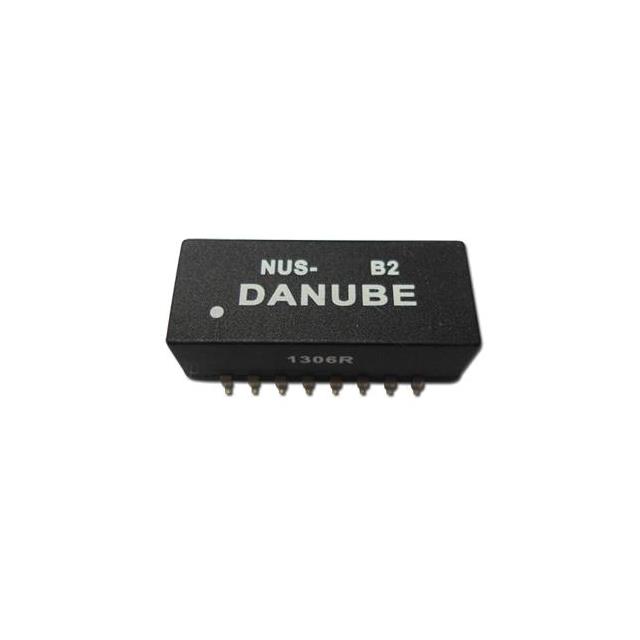

NUS-1215B2
ActiveDiwell Electronics
DC DC CONVERTER 12V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NUS-1215B2
ActiveDiwell Electronics
DC DC CONVERTER 12V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NUS-1215B2 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 133 mA |
| Efficiency | 85 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module, 4 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 10.5 mm |
| Size / Dimension [y] | 0.41 in |
| Size / Dimension [z] | 0.37 in |
| Size / Dimension [z] | 9.3 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.25 | |
| 5 | $ 2.05 | |||
| 10 | $ 1.98 | |||
| 25 | $ 1.88 | |||
| 50 | $ 1.81 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.65 | |||
| 500 | $ 1.59 | |||
Description
General part information
NUS-1215B2
Isolated Module DC DC Converter 1 Output 15V 133mA 10.8V - 13.2V Input
