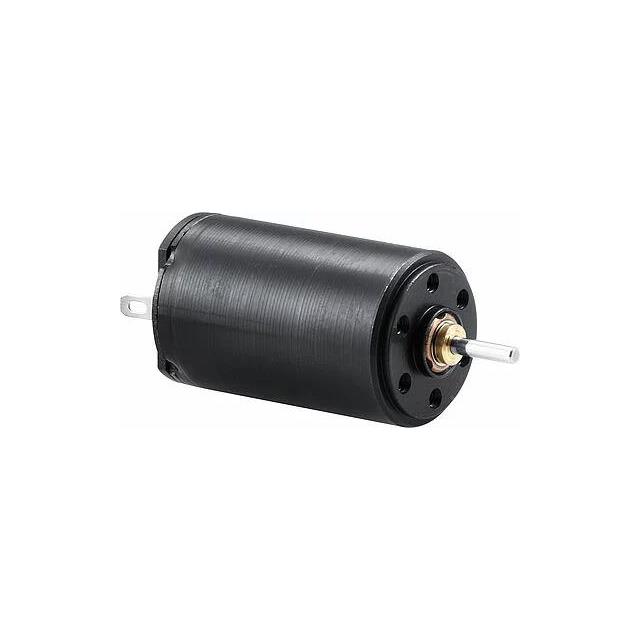

3000001714
ActiveFaulhaber
1524T012SR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3000001714
ActiveFaulhaber
1524T012SR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000001714 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 8.1 mm |
| Length - Shaft and Bearing [x] | 0.319 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 10 mm |
| Mounting Hole Spacing | 0.394 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 5.3 W |
| RPM | 4130 RPM |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.411 oz-in |
| Torque - Rated (oz-in / mNm) | 2.9 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 106.10 | |
| 5 | $ 86.20 | |||
| 20 | $ 66.20 | |||
| 50 | $ 63.10 | |||
Description
General part information
3000001714
Brushed DC Motor Standard 4130 RPM 5.3W 12VDC
