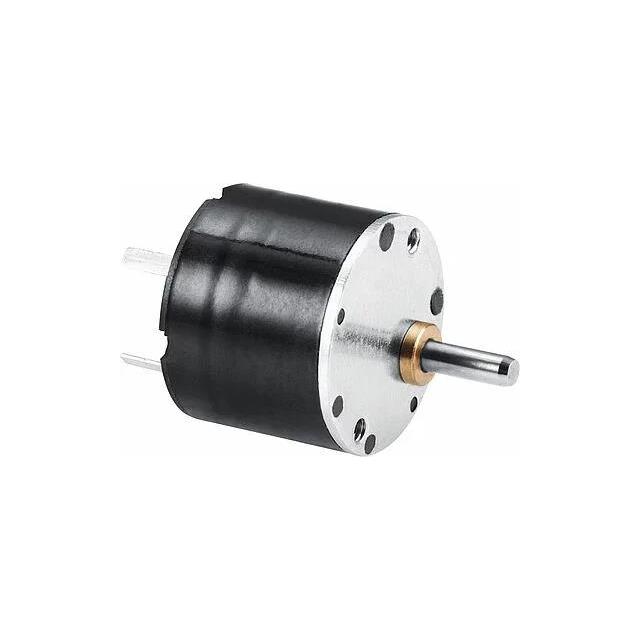

3000001388
ActiveFaulhaber
1512U012SR 324:1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3000001388
ActiveFaulhaber
1512U012SR 324:1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000001388 |
|---|---|
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Function | Standard |
| Gear Reduction Ratio | 324 |
| Motor Type | Brushed |
| Mounting Hole Spacing | 0.48 in |
| Mounting Hole Spacing | 12.2 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Power - Rated | 1.12 W |
| RPM | 15 RPM |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 4.248 oz-in |
| Torque - Rated (oz-in / mNm) | 30 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 199.60 | |
| 5 | $ 162.20 | |||
| 20 | $ 124.70 | |||
| 50 | $ 118.50 | |||
Description
General part information
3000001388
Brushed DC Motor Standard 15 RPM 1.12W 12VDC
