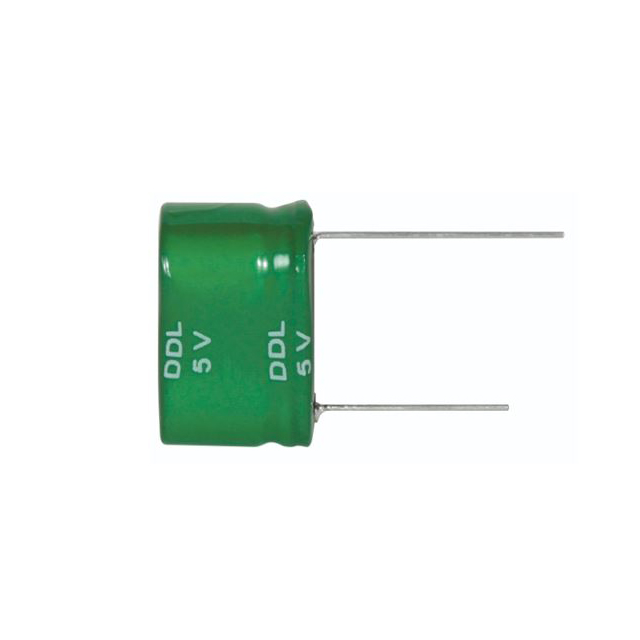

DDL255Q05G2CRRASPZ1
ActiveANGA POW
CAP 2.5F 5.5V T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DDL255Q05G2CRRASPZ1
ActiveANGA POW
CAP 2.5F 5.5V T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DDL255Q05G2CRRASPZ1 |
|---|---|
| Capacitance | 2.5 F |
| ESR (Equivalent Series Resistance) | 250 mOhm |
| Height - Seated (Max) [Max] [z] | 23.5 mm |
| Height - Seated (Max) [Max] [z] | 0.925 in |
| Lead Spacing | 0.602 in |
| Lead Spacing | 15.3 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [x] | 0.433 in |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [y] | 0.846 in |
| Size / Dimension [y] | 21.5 mm |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.20 | |
Description
General part information
DDL255Q05G2CRRASPZ1
2.5 F (EDLC) Supercapacitor 5.5 V Radial, Can 250mOhm @ 1kHz 1000 Hrs @ 65°C
