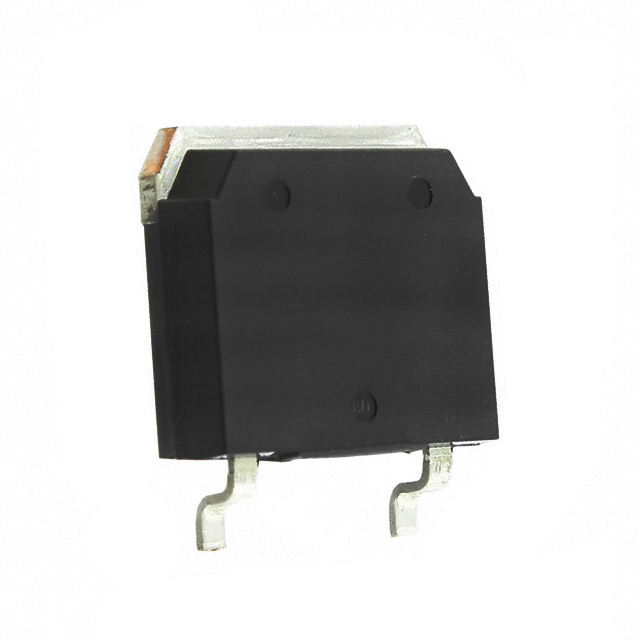

DSEP60-06AZ-TUB
ActiveIXYS
POWER DIODE DISCRETES-FRED TO-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSEP60-06AZ-TUB
ActiveIXYS
POWER DIODE DISCRETES-FRED TO-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSEP60-06AZ-TUB |
|---|---|
| Capacitance @ Vr, F | 67 pF |
| Current - Average Rectified (Io) | 60 A |
| Current - Reverse Leakage @ Vr | 650 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | D3PAK (2 Leads + Tab), TO-268AA, TO-268-3 |
| Reverse Recovery Time (trr) | 35 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-268AA (D3Pak-HV) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.04 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 300 | $ 6.54 | |
Description
General part information
DSEP60-06AZ-TUB
Diode 600 V 60A Surface Mount TO-268AA (D3Pak-HV)
