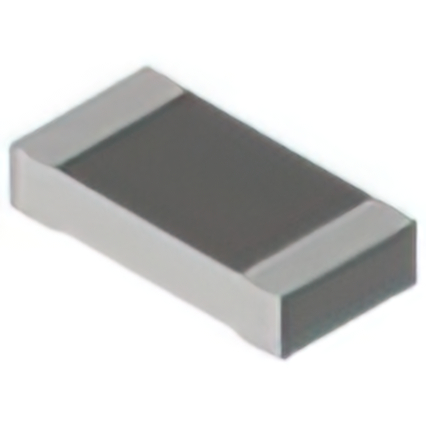

RNHT0805BTE4K64
ActiveStackpole Electronics Inc
RES AUTO, 4.64 KOHM, 0805, 0.1%,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RNHT0805BTE4K64
ActiveStackpole Electronics Inc
RES AUTO, 4.64 KOHM, 0805, 0.1%,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RNHT0805BTE4K64 |
|---|---|
| Composition | Thin Film |
| Features | Automotive AEC-Q200, Anti-Sulfur |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Ratings | AEC-Q200 |
| Resistance | 4.64 kOhms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.09 | |
Description
General part information
RNHT0805BTE4K64
4.64 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
