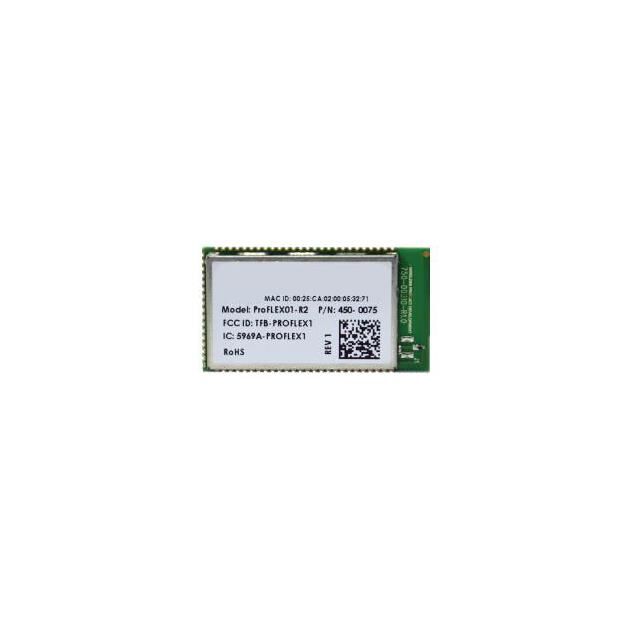

450-0075
ObsoleteEzurio LLC
RF TXRX MOD 802.15.4 TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
450-0075
ObsoleteEzurio LLC
RF TXRX MOD 802.15.4 TH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 450-0075 |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 30 mA |
| Current - Transmitting | 149 mA |
| Data Rate | 250 KBd |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 16 kB |
| Memory Size [custom] | 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -98 dBm |
| Serial Interfaces | I2C, JTAG, UART, SPI |
| Utilized IC / Part | CC2520 |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
450-0075
802.15.4 Zigbee® Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Documents
Technical documentation and resources
No documents available
