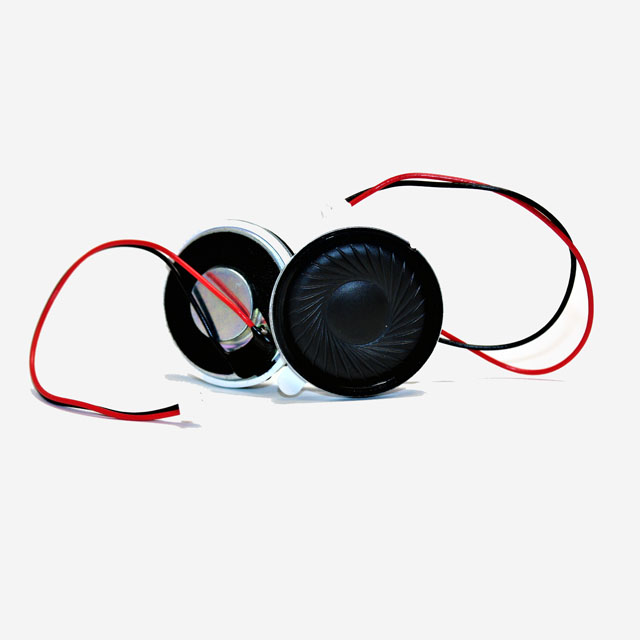

CS28-02W220-05-1X
ActiveChallenge Electronics
SPEAKER 8OHM 0.5W TOP PORT 103DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS28-02W220-05-1X |
|---|---|
| Efficiency - dBA | 103 dBA |
| Efficiency - Testing | 100 mm, 500 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 1.76 kHz |
| Height - Seated (Max) [Max] | 0.22 in |
| Height - Seated (Max) [Max] | 5.6 mm |
| Impedance | 8 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension [diameter] | 1.102 in |
| Size / Dimension [diameter] | 28 mm |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.49 | |
| 10 | $ 2.03 | |||
| 25 | $ 1.87 | |||
| 40 | $ 1.80 | |||
| 80 | $ 1.69 | |||
| 230 | $ 1.54 | |||
| 440 | $ 1.46 | |||
| 945 | $ 1.36 | |||
| 4900 | $ 1.32 | |||
Description
General part information
CS28-02W220-05-1X
8 Ohms General Purpose Speaker 0.5 W 1.76 kHz ~ 10 kHz Top Round
