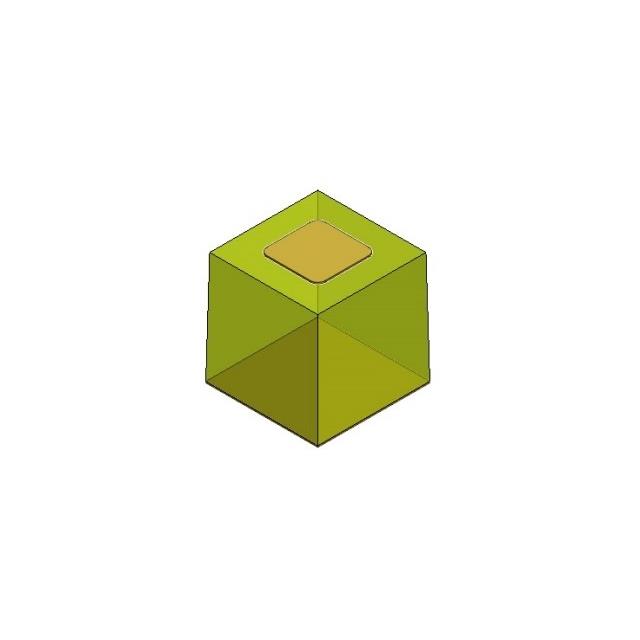

LA YG08TP1
ActiveLight-Avenue
LED CHIP YELLOWISH GREEN
Deep-Dive with AI
Search across all available documentation for this part.
LA YG08TP1
ActiveLight-Avenue
LED CHIP YELLOWISH GREEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LA YG08TP1 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 30 mA |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Die |
| Radiant Intensity (Ie) Min @ If [Min] | 16 mW/sr |
| Type | Visible |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Sheet | 100 | $ 5.40 | |
| 200 | $ 5.29 | |||
| 300 | $ 5.18 | |||
| 400 | $ 5.08 | |||
| 500 | $ 4.98 | |||
| 1000 | $ 2.88 | |||
Description
General part information
LA YG08TP1
Visible Emitter 570nm 2.1V 30mA 16mW/sr @ 20mA Die
Documents
Technical documentation and resources
No documents available
