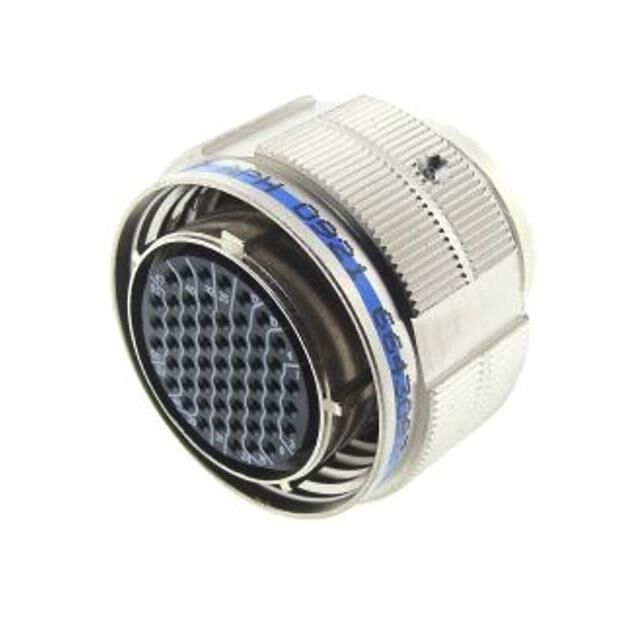

MS27484T14B15SAL
ActiveAero Electric
WALL-MOUNT RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS27484T14B15SAL
ActiveAero Electric
WALL-MOUNT RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS27484T14B15SAL |
|---|---|
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Ingress Protection | IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 55 positions |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | A |
| Primary Material | Metal |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.43 | |
| 10 | $ 39.21 | |||
| 25 | $ 38.08 | |||
| 50 | $ 36.50 | |||
| 100 | $ 35.99 | |||
| 250 | $ 35.03 | |||
| 500 | $ 34.57 | |||
| 1000 | $ 34.12 | |||
Description
General part information
MS27484T14B15SAL
55 Position Circular Connector Free Hanging (In-Line) Coupling Nut
