53A-CBSA-4.0X4.0X0.5
ActiveLeader Tech Inc.

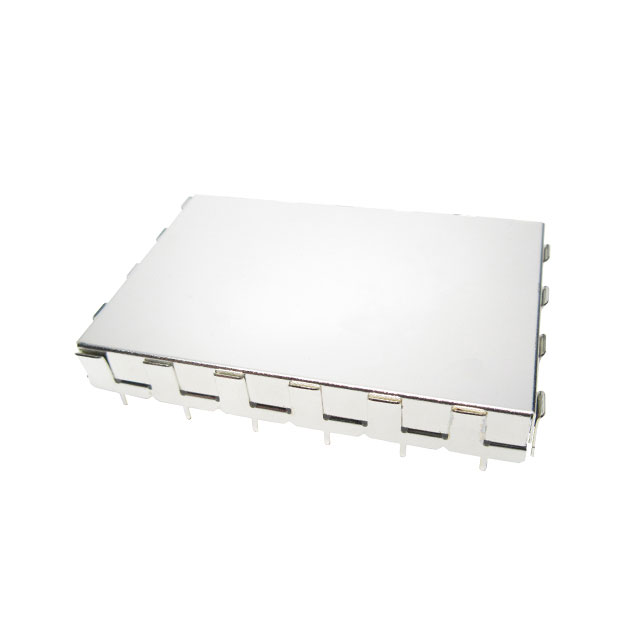

RF SHIELD 4" X 4" THROUGH HOLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 53A-CBSA-4.0X4.0X0.5 |
|---|---|
| Height - Overall [z] | 0.5 in |
| Height - Overall [z] | 12.7 mm |
| Length - Overall [x] | 101.6 mm |
| Length - Overall [x] | 4 " |
| Mounting Type | Through Hole |
| Type | Shield, 2-Piece |
| Ventilation | Non-Vented |
| Width - Overall [y] | 4 " |
| Width - Overall [y] | 101.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 23.43 | |
Description
General part information
53A-CBSA-4.0X4.0X0.5
RF Shield Shield, 2-Piece 4.000" (101.60mm) X 4.000" (101.60mm) Non-Vented Through Hole
