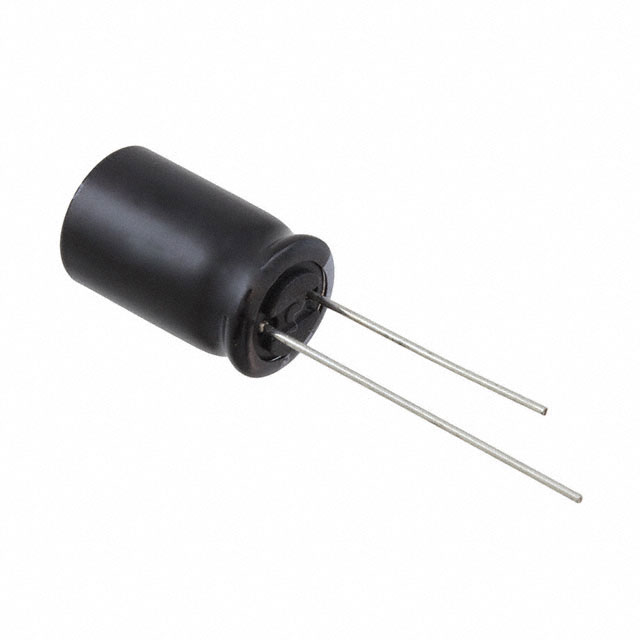

400CFX33MEFC16X25
ActiveRubycon
CAP ALUM 33UF 20% 400V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
400CFX33MEFC16X25
ActiveRubycon
CAP ALUM 33UF 20% 400V RADIAL TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 400CFX33MEFC16X25 |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 ÁF |
| Height - Seated (Max) [Max] [z] | 1.063 in |
| Height - Seated (Max) [Max] [z] | 27 mm |
| Lead Spacing | 7.5 mm |
| Lead Spacing | 0.295 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 320 mA |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 600 | $ 0.76 | |
Description
General part information
400CFX33MEFC16X25
33 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
