CS5346-DQZR
ObsoleteCirrus Logic Inc.
IC ADC/AUDIO 24BIT 192K 48LQFP
Deep-Dive with AI
Search across all available documentation for this part.
CS5346-DQZR
ObsoleteCirrus Logic Inc.
IC ADC/AUDIO 24BIT 192K 48LQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CS5346-DQZR |
|---|---|
| Data Interface | I2C, SPI |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

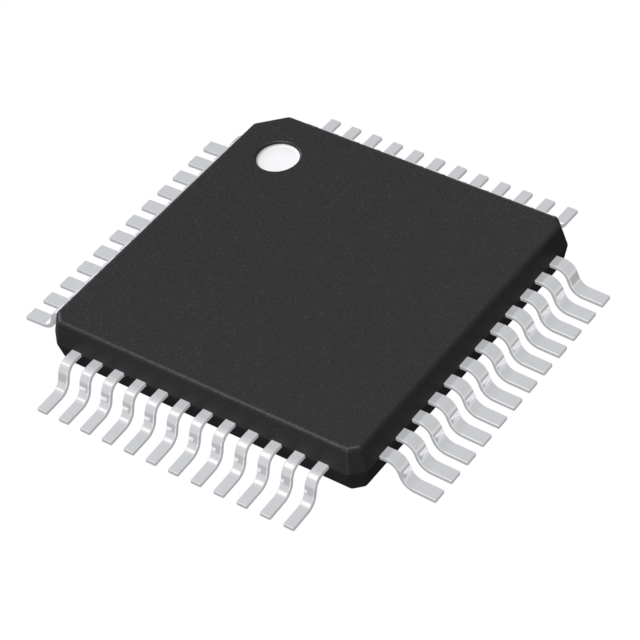

| Package / Case | 48-LQFP |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 192k |
| Supplier Device Package | 48-LQFP (7x7) |
| Type | ADC, Audio |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 3.13 V |
| Voltage Supply Source | Analog and Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CS5346-DQZR
ADC, Audio 24 b 192k I2C, SPI 48-LQFP (7x7)
Documents
Technical documentation and resources
No documents available
