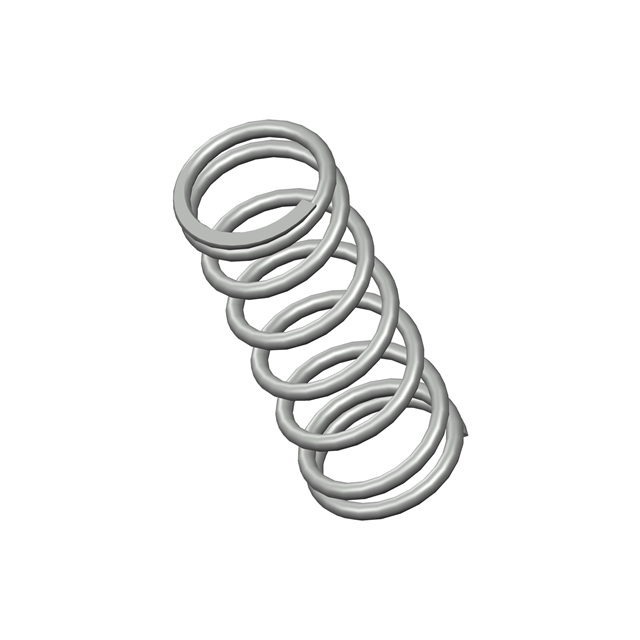

70481CS
ActiveCentury Spring Corp
COMP O= .210,L= .56,W= .022
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
70481CS
ActiveCentury Spring Corp
COMP O= .210,L= .56,W= .022
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 70481CS |
|---|---|
| Diameter - Inside [diameter] | 4.22 mm |
| Diameter - Inside [diameter] | 0.166 in |
| Diameter - Outside [diameter] | 5.33 mm |
| Diameter - Outside [diameter] | 0.21 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 14.22 mm |
| Free Length | 0.56 in |
| Material | Music Wire |
| Rate | 8.7 lbs/in |
| Wire Diameter [diameter] | 0.56 mm |
| Wire Diameter [diameter] | 0.022 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
70481CS
COMP O= .210,L= .56,W= .022
Documents
Technical documentation and resources
