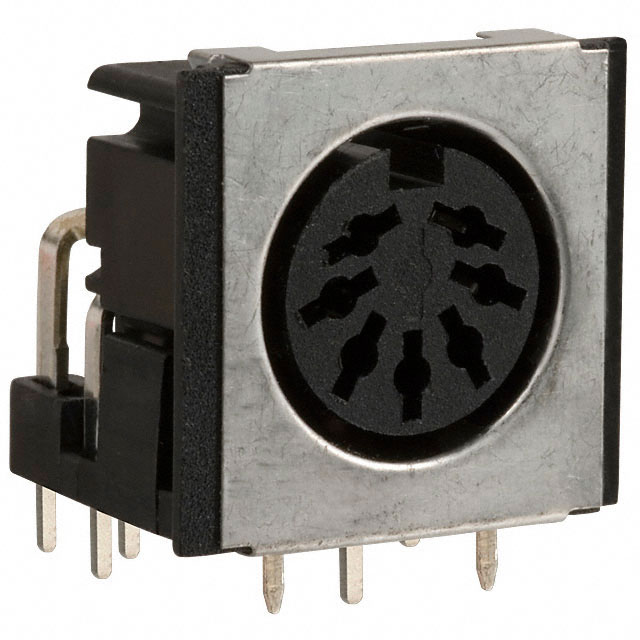

2DJ-0077PSA2
UnknownSingatron Enterprises Co Ltd
CONN RCPT FMALE DIN 7POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
2DJ-0077PSA2
UnknownSingatron Enterprises Co Ltd
CONN RCPT FMALE DIN 7POS SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2DJ-0077PSA2 |
|---|---|
| Applications | Audio |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Material | Brass |
| Fastening Type | Push-Pull |
| Features | Ground |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Size - Insert | DIN (270 Degree) |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 100 VAC, 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.64 | |||
Description
General part information
2DJ-0077PSA2
7 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
No documents available
