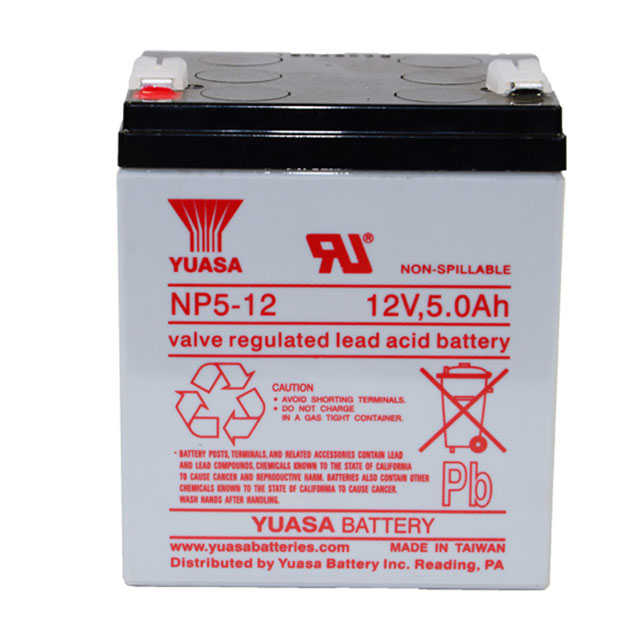

NP5-12
ActiveGS Yuasa Energy Solutions
BATTERY LEAD ACID 12V 5AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NP5-12
ActiveGS Yuasa Energy Solutions
BATTERY LEAD ACID 12V 5AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NP5-12 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 5 Ah |
| Discharge Rate | 20 Hr |
| Size / Dimension [x] | 3.54 in |
| Size / Dimension [x] | 89.9 mm |
| Size / Dimension [y] | 70.1 mm |
| Size / Dimension [y] | 2.76 in |
| Size / Dimension [z] | 104.9 mm |
| Size / Dimension [z] | 4.13 in |
| Termination Style | Spade, .187" and .250" (4.7mm and 6.3mm) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NP5-12
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 5Ah
Documents
Technical documentation and resources
