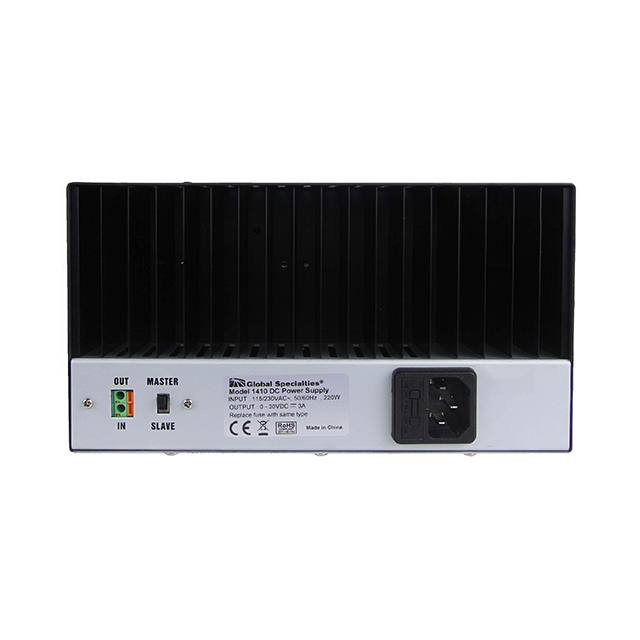

1410
ActiveGLOBAL SPECIALTIES
PWR SPLY 90W SINGLE OUT 30V/3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1410
ActiveGLOBAL SPECIALTIES
PWR SPLY 90W SINGLE OUT 30V/3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1410 |
|---|---|
| Current - Output | 3 A |
| Current Regulation - Line | 0.02, 3 mA |
| Current Regulation - Load | 3 mA, 0.02 % |
| Display Type | LED |
| Features | Constant Current and Constant Voltage Indicators |
| Number of Characters | 2 |
| Number of Characters | 3 |
| Power (Watts) | 90 W |
| Ripple | 1 mV |
| Size / Dimension [x] | 270 mm |
| Size / Dimension [x] | 10.63 in |
| Size / Dimension [y] | 8.071 " |
| Size / Dimension [y] | 205 mm |
| Size / Dimension [z] | 4.528 in |
| Size / Dimension [z] | 115 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 30 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply | 120 VAC, 240 VAC |
| Voltage Regulation - Line | 3 mV, 0.02 % |
| Voltage Regulation - Load | 3 mV, 0.02 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 370.00 | |
| Bulk | 1 | $ 83.94 | ||
Description
General part information
1410
0 ~ 30VDC Output Bench (AC to DC) Power Supply LED 3A Output 90W Features Constant Current and Constant Voltage Indicators
