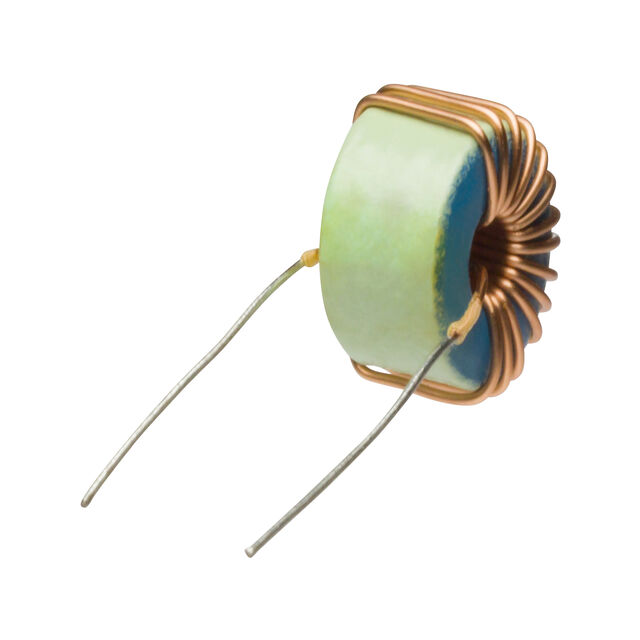

VTP-01001
ActivePremier Magnetics
GENERAL PURPOSE INDUCTOR, 10UH, 1 ELEMENT, POWDERED IRON-CORE, RADIAL LEADED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTP-01001 |
|---|---|
| Current - Saturation (Isat) | 2 A |
| DC Resistance (DCR) [Max] | 75 mOhm |
| Height - Seated (Max) [Max] [z] | 8.89 mm |
| Height - Seated (Max) [Max] [z] | 0.35 " |
| Inductance | 10 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Sendust |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 5.00 | |
| 25 | $ 4.63 | |||
| 50 | $ 4.25 | |||
| 100 | $ 3.75 | |||
| 250 | $ 3.25 | |||
| 500 | $ 2.63 | |||
| 1000 | $ 1.75 | |||
Description
General part information
VTP-01001
10 µH Unshielded Wirewound Inductor 75mOhm Max
