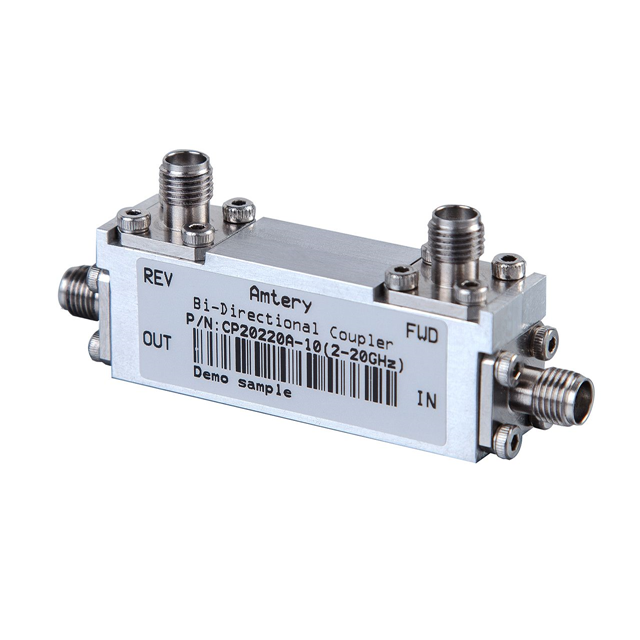

CP20220A-10
ActiveAmtery Corporation
2 GHZ - 20 GHZ, 10 DB COUPLING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP20220A-10
ActiveAmtery Corporation
2 GHZ - 20 GHZ, 10 DB COUPLING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP20220A-10 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 20 GHz |
| Frequency [Min] | 2 GHz |
| Insertion Loss | 1.5 dB |
| Isolation | 32 dB |
| Package / Case | Module, SMA Connectors |
| Power - Max [Max] | 20 W |
| Return Loss | 21 dB |
| Supplier Device Package | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 531.00 | |
| 4 | $ 518.00 | |||
| 10 | $ 509.00 | |||
Description
General part information
CP20220A-10
RF Directional Coupler General Purpose 2GHz ~ 20GHz 10dB 20W Module, SMA Connectors
