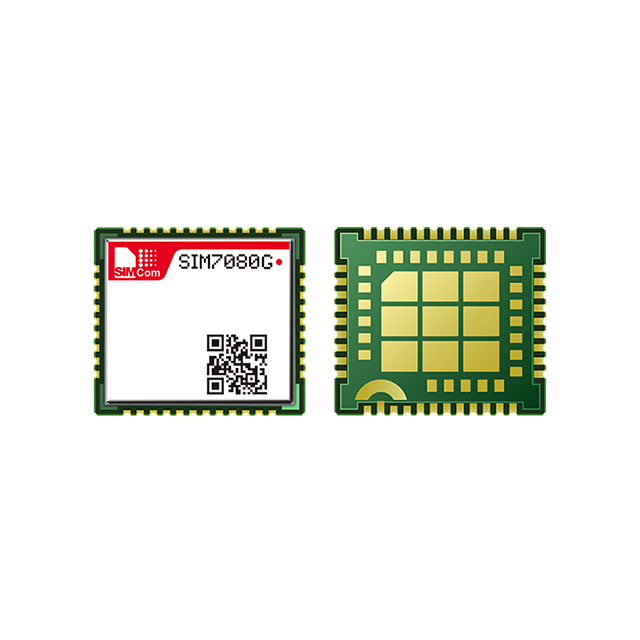

SIM7080G
ActiveSIMCom Wireless Solutions
RF TXRX MOD CELL NAV SMD
Deep-Dive with AI
Search across all available documentation for this part.
SIM7080G
ActiveSIMCom Wireless Solutions
RF TXRX MOD CELL NAV SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIM7080G |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving [Max] | 1.4 mA |
| Current - Receiving [Min] | 590 µA |
| Current - Transmitting [Max] | 162 mA |
| Current - Transmitting [Min] | 52 mA |
| Data Rate | 1.119 Mbps |
| Frequency [Max] | 1.576 GHz, 1.606 GHz, 1.563 GHz |
| Frequency [Min] | 1.574 GHz, 1.559 GHz, 1.598 GHz, 1575 MHz |
| Modulation | QPSK, BPSK, 16-QAM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 77-SMD Module |
| Power - Output | 20 dBm |
| Protocol | Galileo, LTE, GNSS, GLONASS, GPS |
| RF Family/Standard | Cellular, Navigation |
| Sensitivity | -159 dBm |
| Serial Interfaces | PCM, GPIO, I2C, USB, ADC, UART, SPI |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.91 | |
| 10 | $ 21.23 | |||
| 25 | $ 19.55 | |||
| 80 | $ 17.78 | |||
| 230 | $ 16.49 | |||
| 440 | $ 15.81 | |||
Description
General part information
SIM7080G
Cellular, Navigation Galileo, GLONASS, GPS, GNSS, LTE Transceiver Module 1.559GHz ~ 1.576GHz, 1.575GHz ~ 1.576GHz, 1.574GHz ~ 1.606GHz, 1.598GHz ~ 1.563GHz Antenna Not Included Surface Mount
