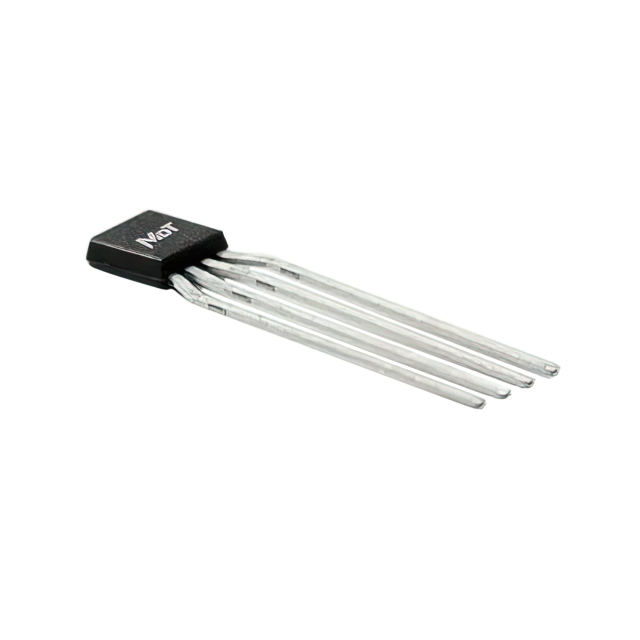

TMR2503B
ActiveMULTIDIMENSION
TMR SENSOR MAG FIELD 1MV/V/OE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMR2503B
ActiveMULTIDIMENSION
TMR SENSOR MAG FIELD 1MV/V/OE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR2503B |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Linear Position |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Output | Wheatstone Bridge |
| Package / Case | 4-SSIP |
| Resistance | 900 Ohms |
| Supplier Device Package | 4-SSIP |
| Technology | Magnetoresistive |
| Termination Style | PC Pin |
| Voltage - Supply | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TMR2503B
Magnetoresistive Sensor Linear Position External Magnet, Not Included PC Pin
Documents
Technical documentation and resources
