P36SMT 103
ActivePTR HARTMANN
SWITCH ROTARY DIP HEXADECIMAL 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P36SMT 103 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating (Amps) | 100 mA |
| Height Above Board | 0.152 in |
| Height Above Board | 3.85 mm |
| Length [x] | 0.291 in |
| Length [x] | 7.4 mm |
| Mechanical Life | 25000 Steps |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -50 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 42 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.19 | |
| 10 | $ 4.02 | |||
| 50 | $ 3.41 | |||
| 100 | $ 3.18 | |||
| 250 | $ 2.88 | |||
| 450 | $ 2.67 | |||
| 950 | $ 2.48 | |||
| 2400 | $ 2.25 | |||
Description
General part information
P36SMT 103

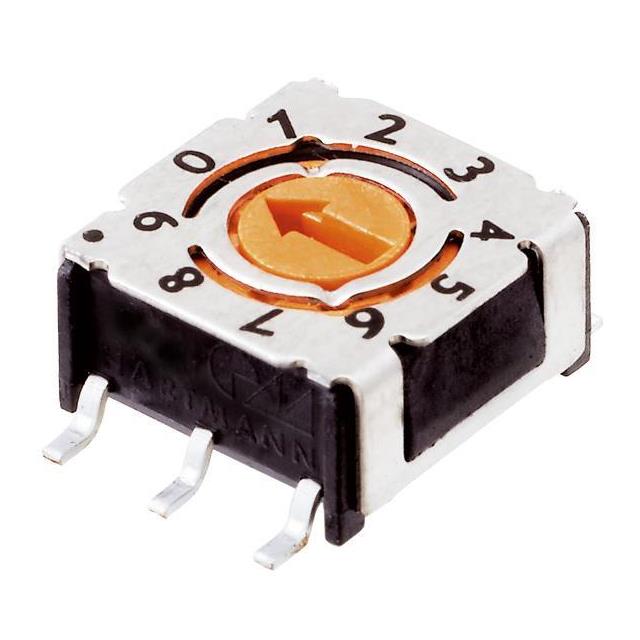

Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 100mA 42VDC
