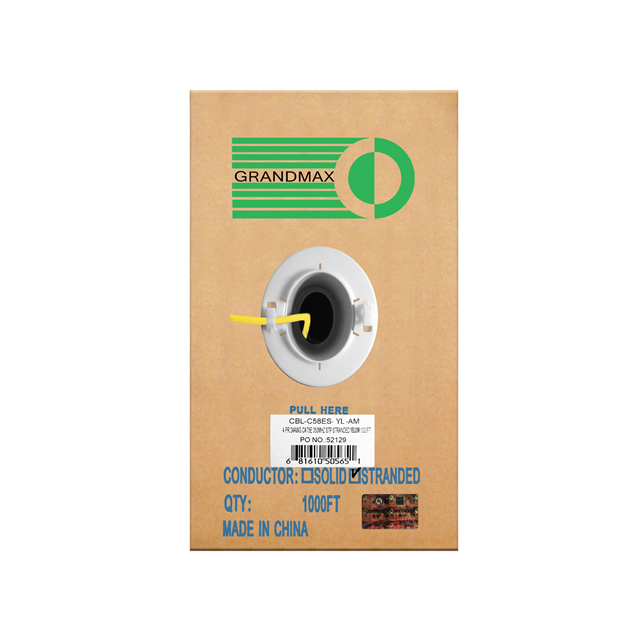

CBL-C58ES-YL-AM
ActiveGRANDMAX
CABLE CAT5E 8COND 24AWG 1000'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBL-C58ES-YL-AM
ActiveGRANDMAX
CABLE CAT5E 8COND 24AWG 1000'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBL-C58ES-YL-AM |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 0.0076 in |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 5.99 mm |
| Jacket (Insulation) Diameter [diameter] | 0.236 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Yellow |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 255.00 | |
Description
General part information
CBL-C58ES-YL-AM
8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Yellow 24 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
