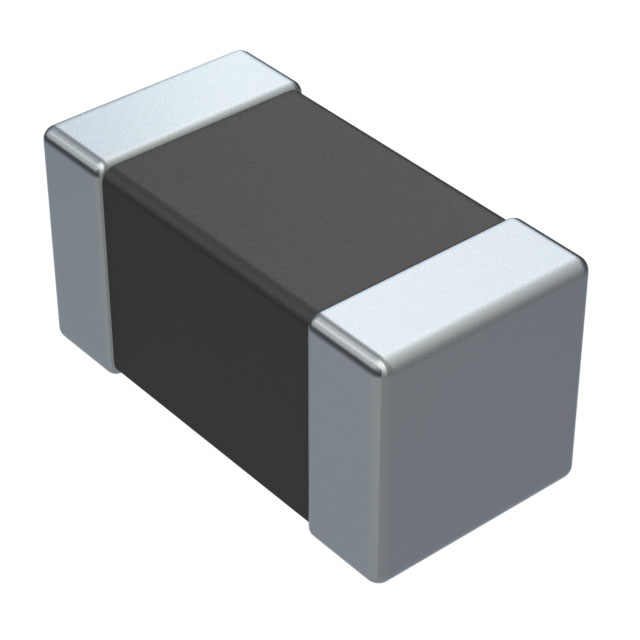

TH05-3I103FR
ActiveMitsubishi Materials U.S.A. Corporation
AEC-Q200 NTC CHIP THERMISTOR 10K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TH05-3I103FR
ActiveMitsubishi Materials U.S.A. Corporation
AEC-Q200 NTC CHIP THERMISTOR 10K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TH05-3I103FR |
|---|---|
| B Value Tolerance | 1 % |
| B25/50 | 3380 K |
| B25/85 | 3435 K |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Power - Max [Max] | 240 mW |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 5 | $ 0.22 | |||
| 10 | $ 0.21 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.26 | ||
| 5 | $ 0.22 | |||
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
| Tape & Reel (TR) | 10000 | $ 0.13 | ||
| 20000 | $ 0.13 | |||
| 30000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
| 70000 | $ 0.12 | |||
Description
General part information
TH05-3I103FR
NTC Thermistor 10k 0402 (1005 Metric)
