VC05-0036
ActiveOuneva
OTL 1XAL/CU 35-240MM YE/GR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0036 |
|---|---|
| Current Rating (Amps) | 425 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size | 500 kcmil |
| Line Side Wire/Stud Size | #2CU/AL |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | #2CU/AL |
| Load Side Wire/Stud Size | 500 MCM (kcmil) |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 24 | $ 36.29 | |
| 384 | $ 33.99 | |||
Description
General part information

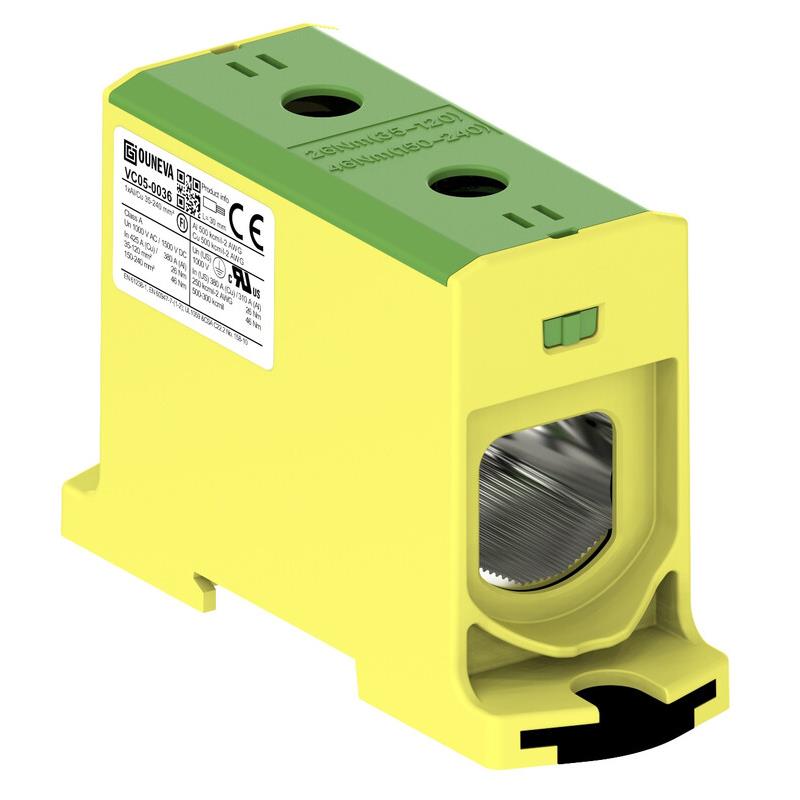

VC05-0036
1 Pole Power Distribution Block 425 A 1500 V
