PM-9610
ActivePremier Magnetics
XFMR,ISO WITH FILTR,1000 BASE T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM-9610
ActivePremier Magnetics
XFMR,ISO WITH FILTR,1000 BASE T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM-9610 |
|---|---|
| Height - Seated (Max) [Max] | 10.15 mm |
| Height - Seated (Max) [Max] | 0.4 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 18.6 mm |
| Size / Dimension [x] | 0.732 " |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Transformer Type | LAN 1000 Base-T |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 8.80 | |
| 25 | $ 8.14 | |||
| 50 | $ 7.48 | |||
| 100 | $ 6.60 | |||
| 250 | $ 5.72 | |||
| 500 | $ 4.62 | |||
| 1000 | $ 3.48 | |||
Description
General part information
PM-9610

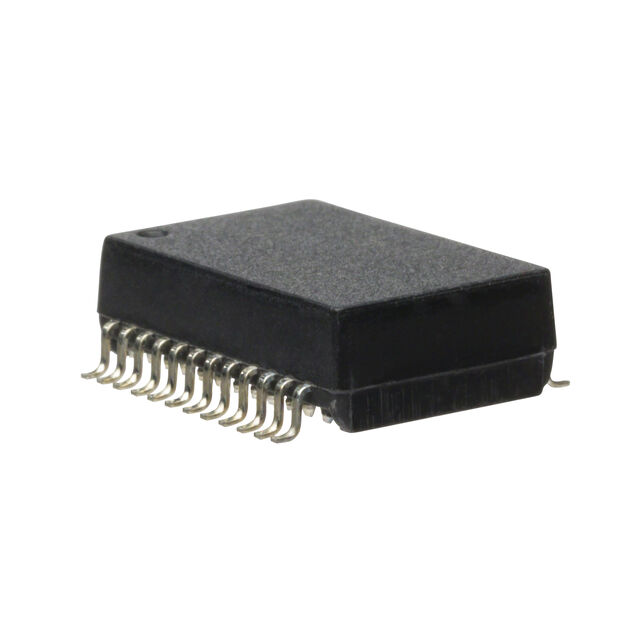

350µH LAN 1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
