Technical Specifications
Parameters and characteristics for this part
| Specification | ADT-PC-LCSC-SMA1DX-RYL-1M |
|---|---|
| 1st Connector | LC/UPC |
| 2nd Connector | SC/UPC |
| Bend Radius [radius] | 10 mm |
| Cable Diameter [diameter] | 2 mm |
| Cable Diameter [diameter] | 0.08 in |
| Cable Type | Fiber Patch |
| Color - Cable | Yellow |
| Color - Connectors | Blue |
| Features | Riser |
| Fiber Type | 9/125 |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall [x] | 1 m |
| Length - Overall [x] | 3.3 ft |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Ratings | OFNR |
| Return Loss | 50 dB |
| Type | OS2, Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 18.25 | |
| 10 | $ 14.04 | |||
| 25 | $ 12.70 | |||
| 50 | $ 11.80 | |||
| 100 | $ 10.98 | |||
| 250 | $ 10.01 | |||
| 500 | $ 9.36 | |||
| 1000 | $ 8.77 | |||
Description
General part information

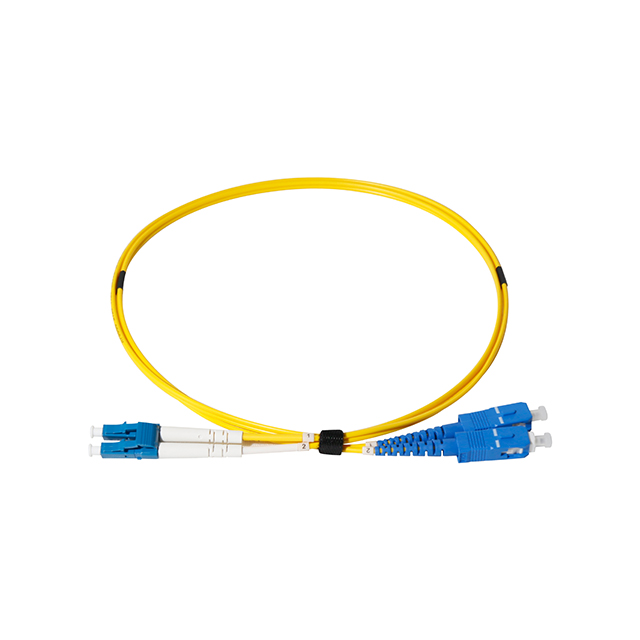

ADT-PC-LCSC-SMA1DX-RYL-1M
Cable Fiber Optic LC/UPC To SC/UPC 9/125 3.3' (1.0m)
Documents
Technical documentation and resources
