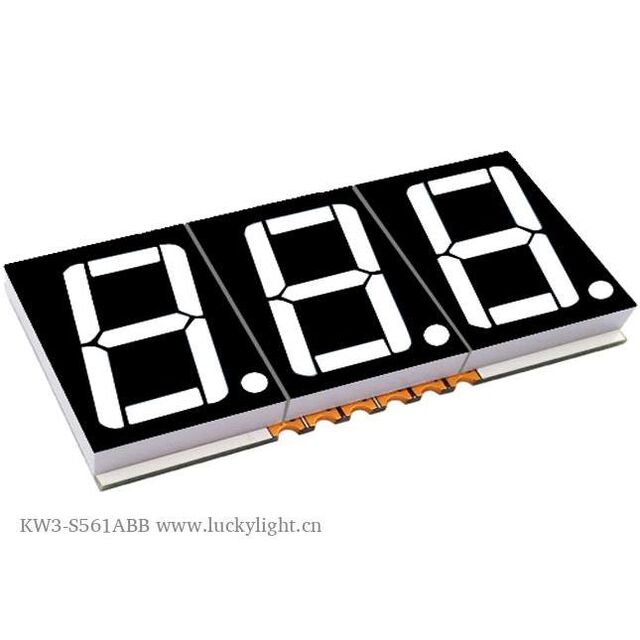

KW3-S561ABB
ActiveLuckylight
0.56INCH (14.2MM),BLUE TRIPLE DI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW3-S561ABB
ActiveLuckylight
0.56INCH (14.2MM),BLUE TRIPLE DI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW3-S561ABB |
|---|---|
| Color | Blue |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 25 mcd |
| Number of Characters | 3 |
| Package / Case | 12-SMD, No Lead |
| Power Dissipation (Max) [Max] | 35 mW |
| Size / Dimension | 1 |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [x] | 0.748 in |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 1.90 | |
Description
General part information
KW3-S561ABB
Display Modules - LED Character and Numeric Blue 7-Segment 3 Character Common Anode 2.9V 10mA 0.748" H x 1.476" W x 0.148" D (19.00mm x 37.50mm x 3.75mm) 12-SMD, No Lead
