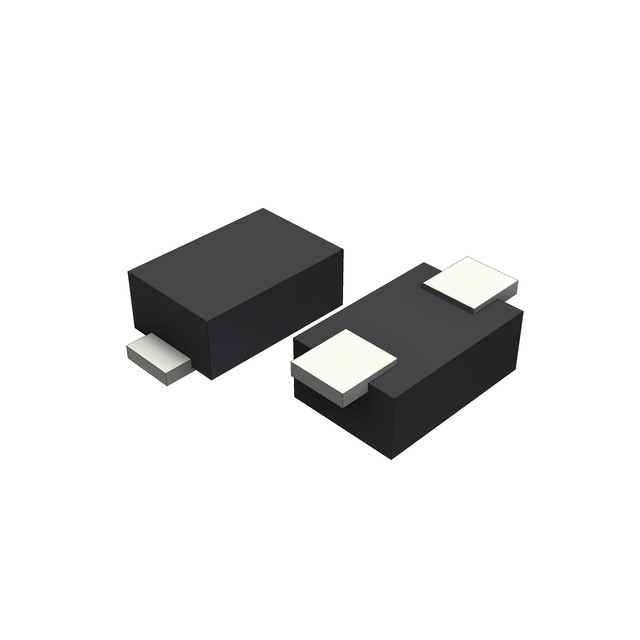

BZT52C18
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT ZENER DIODE
Deep-Dive with AI
Search across all available documentation for this part.
BZT52C18
ActiveHY Electronic (Cayman) Limited
SURFACE MOUNT ZENER DIODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BZT52C18 |
|---|---|
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | SOD-123 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOD-123 |
| Tolerance | 6.39 % |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
| Voltage - Zener (Nom) (Vz) | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20 | $ 0.05 | |
| 100 | $ 0.04 | |||
| 1000 | $ 0.03 | |||
| 12000 | $ 0.06 | |||
Description
General part information
BZT52C18
Zener Diode 18 V 500 mW ±6.39% Surface Mount SOD-123
Documents
Technical documentation and resources
No documents available
