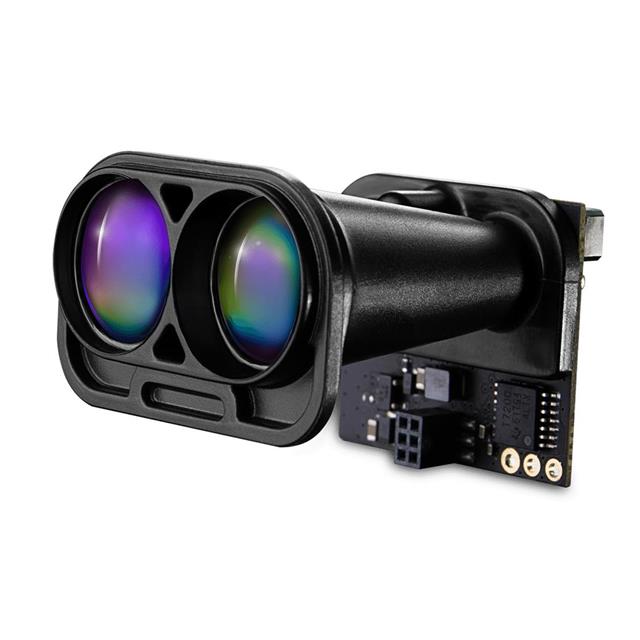

SF23/B
ActiveLightWare LiDAR
SENSOR OPTICAL SERIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF23/B
ActiveLightWare LiDAR
SENSOR OPTICAL SERIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF23/B |
|---|---|
| Current - Supply | 5 mA |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Output Type | 1.81 mOhm |
| Sensing Distance [Max] | 50 m |
| Sensing Distance [Max] | 1968.5 in |
| Sensing Distance [Min] | 7.87 in |
| Sensing Distance [Min] | 20 cm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 259.00 | |
Description
General part information
SF23/B
Optical Sensor 7.87" ~ 1968.50" (20 ~ 5000cm) Serial Output
Documents
Technical documentation and resources
