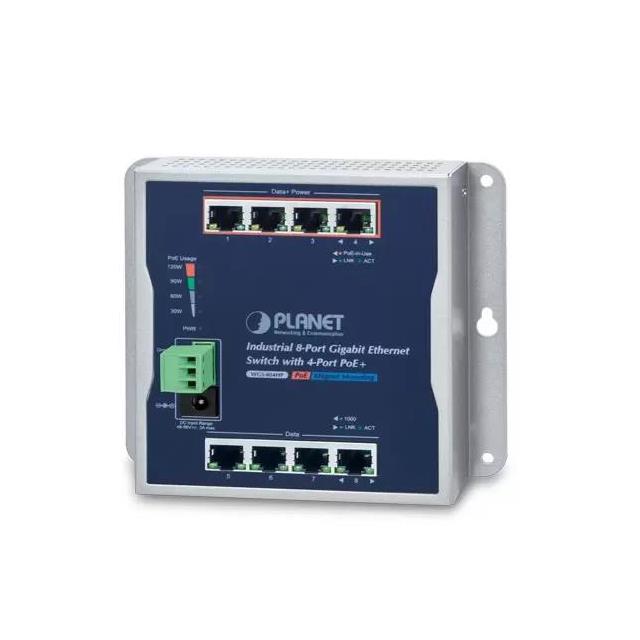

WGS-804HP
ActivePlanet
WALL MOUNTED GIGABIT ETHERNET SW
Deep-Dive with AI
Search across all available documentation for this part.
WGS-804HP
ActivePlanet
WALL MOUNTED GIGABIT ETHERNET SW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WGS-804HP |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45 |
| Copper Ports | 8 |
| Copper Type | 1000, 10, 100 |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail, Wall Mount |
| Number of Ports | 8 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| PoE Ports | 4 |
| Voltage - Input [Max] | 56 VDC |
| Voltage - Input [Min] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 176.00 | |
Description
General part information
WGS-804HP
Network Switch - Managed 8 Ports IP30
Documents
Technical documentation and resources
No documents available
