9736SW8809
ActiveSouthwire
REPLCORD, 16/3 SPT-3 6' GRAY SW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9736SW8809
ActiveSouthwire
REPLCORD, 16/3 SPT-3 6' GRAY SW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9736SW8809 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | Cable |
| Color | Gray |
| Cord Type | SPT-3 |
| Current Rating (Amps) | 13 A |
| Length | 6 ft |
| Length | 1.83 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Style | Male Pins (Blades) to Leads |
| Voltage Rating | 125 VDC |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.26 | |
Description
General part information
9736SW8809

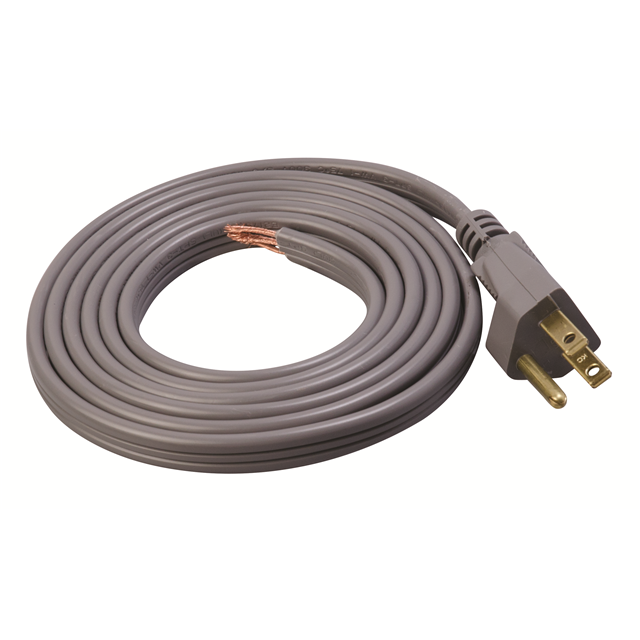

6.00' (1.83m) Power Cord Gray NEMA 5-15P To Cable SPT-3
Documents
Technical documentation and resources
