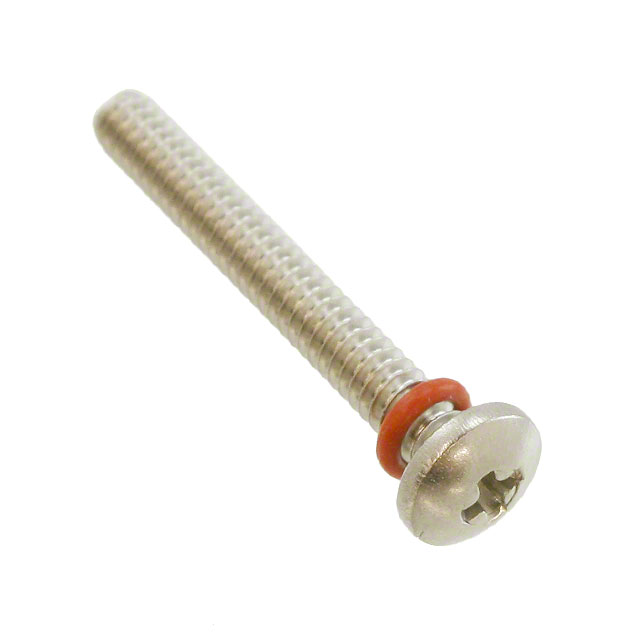

R4-40X7/8 2701
ActiveAPM HEXSEAL
MACHINE SCREW PAN PHILLIPS 4-40
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R4-40X7/8 2701
ActiveAPM HEXSEAL
MACHINE SCREW PAN PHILLIPS 4-40
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R4-40X7/8 2701 |
|---|---|
| Drive Type | Phillips |
| Features | Self Sealing |
| Head Diameter [diameter] | 6.05 mm |
| Head Diameter [diameter] | 0.238 " |
| Head Height | 2.03 mm |
| Head Height | 0.08 in |
| Length - Below Head | 0.875 in |
| Length - Below Head | 22.23 mm |
| Length - Below Head [x] | 0.875 in |
| Length - Overall [x] | 0.955 in |
| Length - Overall [x] | 24.26 mm |
| Material | Stainless Steel |
| Screw Head Type | Pan Head |
| Thread Size | #4-40 |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.85 | |
| 5 | $ 0.73 | |||
| 10 | $ 0.61 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.55 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
Description
General part information
R4-40X7/8 2701
#4-40 Pan Head Machine Screw Phillips Drive Stainless Steel
