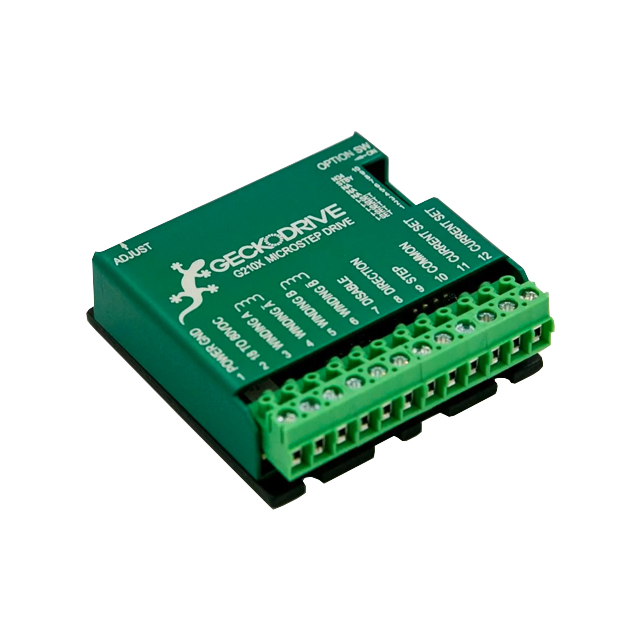

G210X STEP MOTOR CONTROL
ActiveGeckodrive, Inc.
80VDC 7A LOW RES STP MTR CTRL
Deep-Dive with AI
Search across all available documentation for this part.
G210X STEP MOTOR CONTROL
ActiveGeckodrive, Inc.
80VDC 7A LOW RES STP MTR CTRL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G210X STEP MOTOR CONTROL |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 7 A |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Type | Module |
| Voltage - Load [Max] | 80 V |
| Voltage - Load [Min] | 18 V |
| Voltage - Supply [Max] | 80 V |
| Voltage - Supply [Min] | 18 V |
| Wattage - Load | 13 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
G210X STEP MOTOR CONTROL
Stepper, Bipolar 18 ~ 80VDC Supply 7A 18 ~ 80V Load
Documents
Technical documentation and resources
No documents available
