10-473-A3
ActiveCoax Connectors Ltd

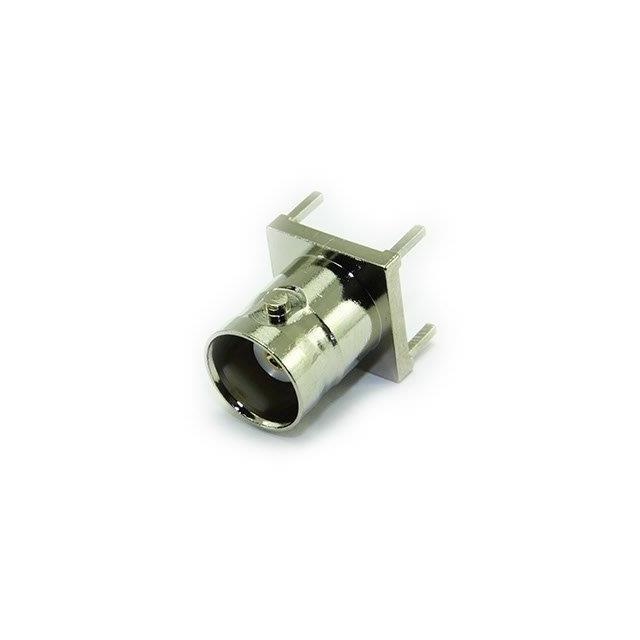

BNC PCB RECEPTACLE,50 OHM,SQUARE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-473-A3
ActiveCoax Connectors Ltd
BNC PCB RECEPTACLE,50 OHM,SQUARE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10-473-A3 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | IP64 - Dust Tight, Water Resistant |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10-473-A3
BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
