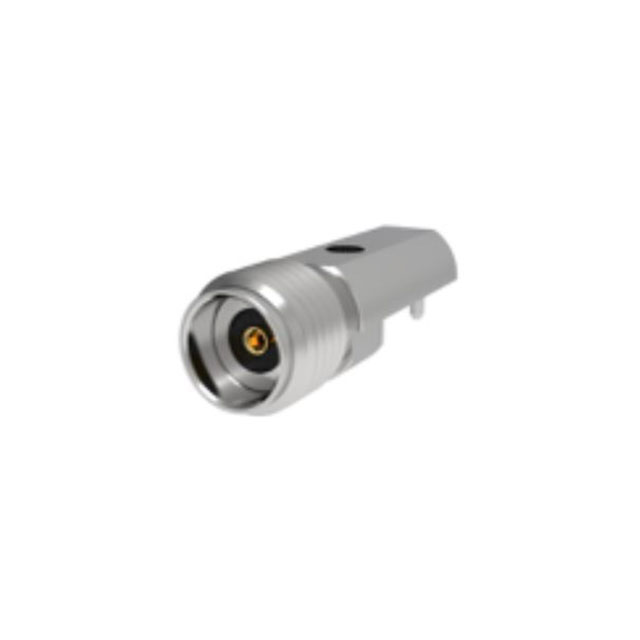

TMB-E4FS-1ST
ActiveCarlisleIT
2.4(F)STR,EL,SMT,SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMB-E4FS-1ST
ActiveCarlisleIT
2.4(F)STR,EL,SMT,SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMB-E4FS-1ST |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Connector Style | OS-50 |
| Connector Style | 2.4 mm |
| Connector Style | APC-2.4 |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Insertion Loss | 0.42 dB |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.87 | |
| 10 | $ 21.76 | |||
Description
General part information
TMB-E4FS-1ST
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
