1412KPF188
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Deep-Dive with AI
Search across all available documentation for this part.
1412KPF188
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1412KPF188 |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter [diameter] | 0.46 " |
| Head Diameter [diameter] | 11.68 mm |
| Head Height | 0.142 in |
| Head Height | 3.61 mm |
| Length - Below Head [x] | 19.05 mm |
| Length - Below Head [x] | 0.75 " |
| Length - Overall [x] | 0.892 in |
| Length - Overall [x] | 22.66 mm |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Flat Head |
| Thread Size | 1/4"-14 |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 3000 | $ 0.99 | |
Description
General part information
1412KPF188

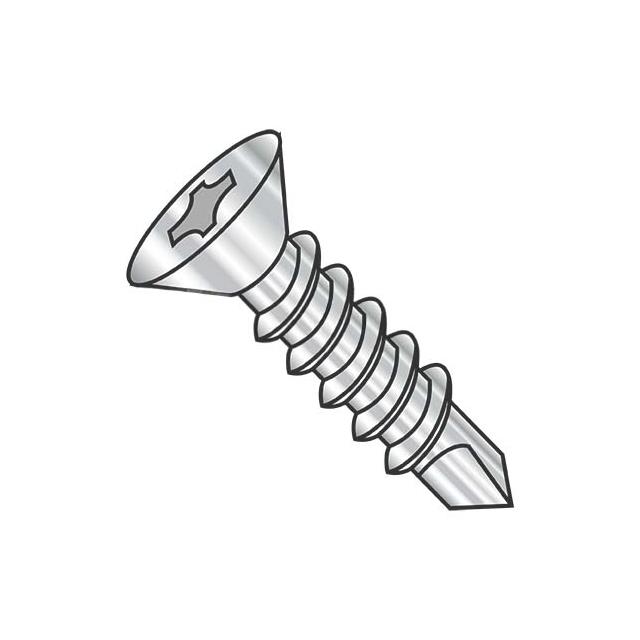

1/4"-14 Flat Head Self-Drilling Screw Phillips Drive Stainless Steel
Documents
Technical documentation and resources
No documents available
