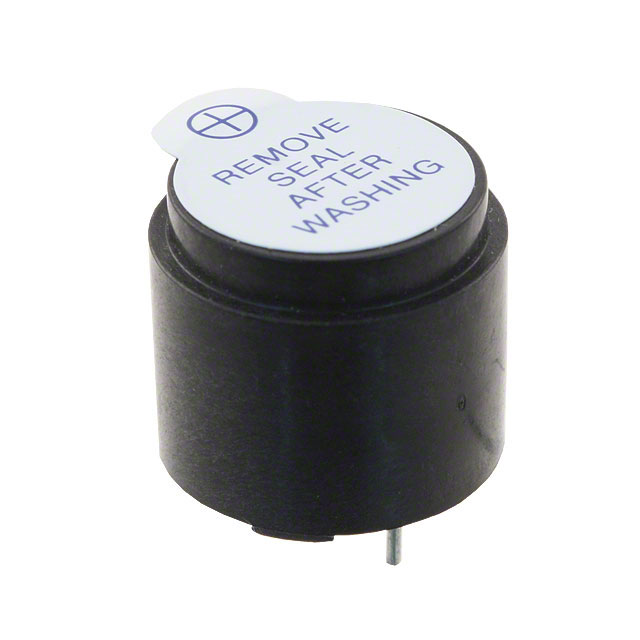

WST-1612S
ActiveSoberton Inc.
BUZZER MAGNETIC 12V 16MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WST-1612S
ActiveSoberton Inc.
BUZZER MAGNETIC 12V 16MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WST-1612S |
|---|---|
| Current - Supply | 40 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 2.3 kHz |
| Height - Seated (Max) | 14.3 mm |
| Height - Seated (Max) [Max] | 0.563 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Ratings | Washable |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 14 V |
| Voltage Range [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.83 | |
| 10 | $ 2.31 | |||
| 25 | $ 2.13 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.73 | |||
| 500 | $ 1.63 | |||
| 1000 | $ 1.55 | |||
Description
General part information
WST-1612S
Buzzers Indicator, Internally Driven Magnetic 12 V 40mA 2.3kHz 85dB @ 12V, 10cm Through Hole PC Pins
