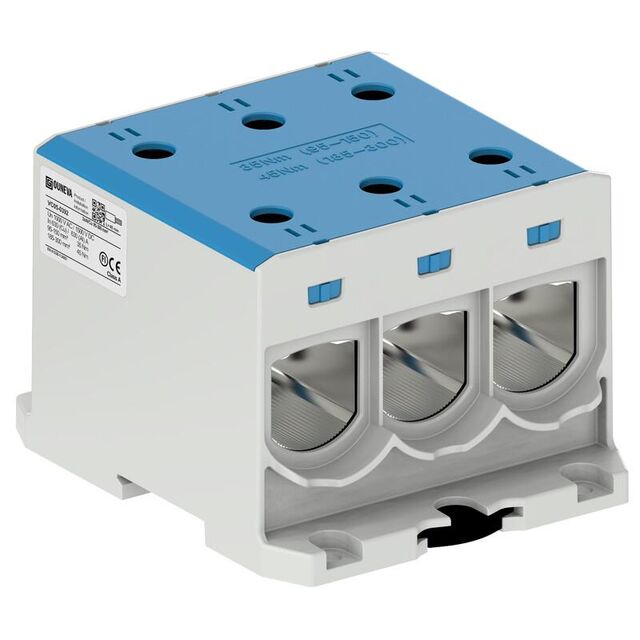

VC05-0392
ActiveOuneva
OTL 3XAL/CU 95-300MM BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0392 |
|---|---|
| Current Rating (Amps) | 630 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size | 3/0 |
| Line Side Wire/Stud Size | 600 MCM (kcmil) |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | 600 MCM (kcmil) |
| Load Side Wire/Stud Size | 3/0 |
| Number of Poles | 3 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 258.13 | |
| 49 | $ 195.76 | |||
Description
General part information
VC05-0392
3 Pole Power Distribution Block 630 A 1500 V
