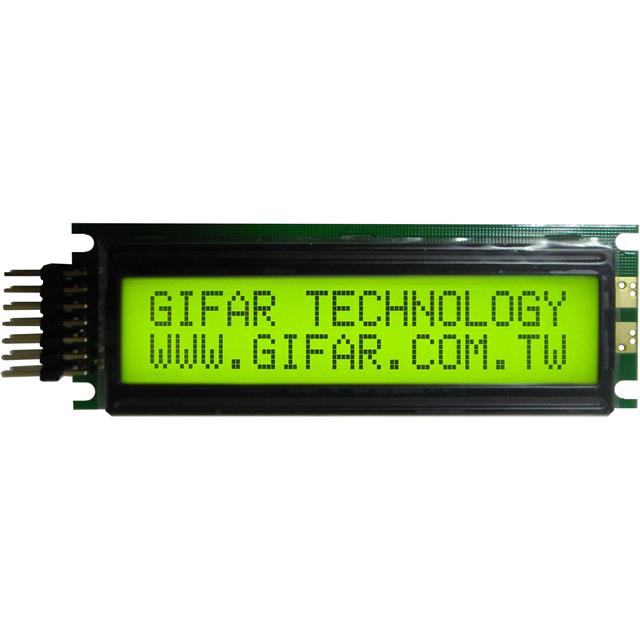

GFC1602AM-GPOE-JP03
ActiveGi Far technology Co., Ltd
16X2STN-GYELLOW GREEN85X30X13
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GFC1602AM-GPOE-JP03
ActiveGi Far technology Co., Ltd
16X2STN-GYELLOW GREEN85X30X13
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GFC1602AM-GPOE-JP03 |
|---|---|
| Background Color | Yellow/Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 2.78 mm |
| Character Size [z] | 4.89 mm |
| Controller Type | ST7066U-0A |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.5 mm |
| Dot Size [y] | 0.55 mm |
| Interface | Parallel |
| Number of Characters | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 85 mm |
| Outline L x W x H [y] | 30 mm |
| Outline L x W x H [z] | 13.2 mm |
| Text Color | Dark Blue |
| Viewing Area [x] | 65 mm |
| Viewing Area [y] | 16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 14.04 | |
| 5 | $ 10.64 | |||
| 100 | $ 9.36 | |||
| 500 | $ 8.51 | |||
| 1000 | $ 7.66 | |||
Description
General part information
GFC1602AM-GPOE-JP03
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 85.00mm x 30.00mm x 13.20mm
