ZF120A-2401500
ActiveSupirit Inc.

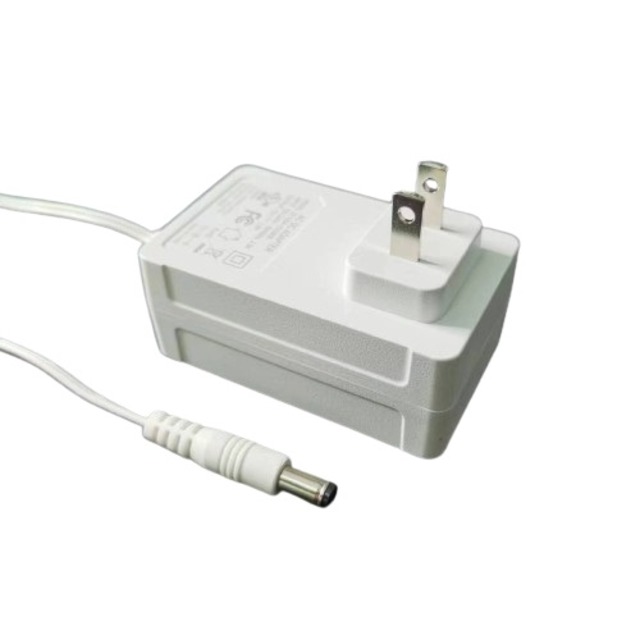

AC/DC WM ADAPTER 24V 36W CLASS 2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZF120A-2401500
ActiveSupirit Inc.
AC/DC WM ADAPTER 24V 36W CLASS 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZF120A-2401500 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, FCC, cULus |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 90 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | North America |
| Size / Dimension [x] | 77 mm |
| Size / Dimension [x] | 3.03 in |
| Size / Dimension [y] | 1.85 " |
| Size / Dimension [y] | 47 mm |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Standard Number | 1310 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.82 | |
| 10 | $ 11.23 | |||
| 25 | $ 10.78 | |||
| 50 | $ 10.34 | |||
| 100 | $ 9.45 | |||
| 250 | $ 8.86 | |||
| 500 | $ 8.12 | |||
| 1000 | $ 7.86 | |||
Description
General part information
ZF120A-2401500
24V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
