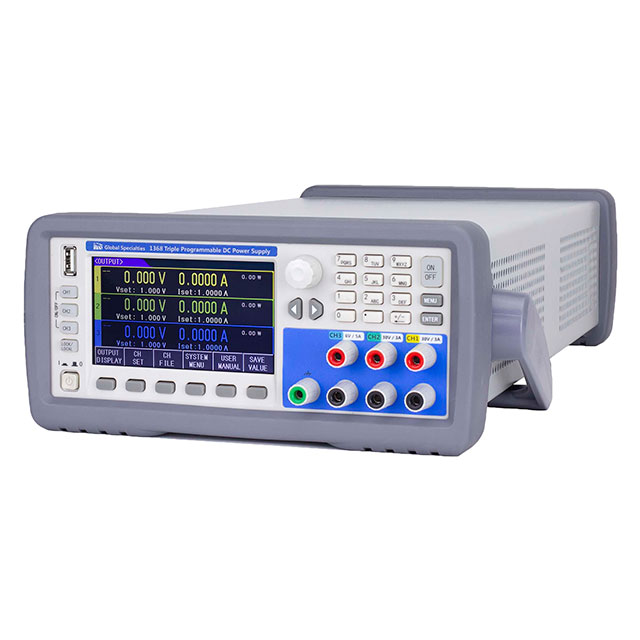

1368
ActiveGLOBAL SPECIALTIES
TRIPLE OUTPUT PROGRAMMABLE DC PO
Deep-Dive with AI
Search across all available documentation for this part.
1368
ActiveGLOBAL SPECIALTIES
TRIPLE OUTPUT PROGRAMMABLE DC PO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1368 |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.1% + 20mA, 0.02% + 5mV |
| Current - Output [Max] | 5 A, 3 A |
| Current - Output [Min] | 0 A |
| Display Type | LCD |
| Features | Tracking, RS232 and USB Interface, Memory, Programmable |
| Number of Outputs | 3 |
| Power (Watts) | 210 W |
| Ripple | 3 mV |
| Size / Dimension [x] | 431.8 mm |
| Size / Dimension [x] | 17 in |
| Size / Dimension [y] | 266.7 mm |
| Size / Dimension [y] | 10.5 in |
| Size / Dimension [z] | 114.3 mm |
| Size / Dimension [z] | 114.3 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 30 VDC, 6 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply | 230 VAC |
| Voltage - Supply | 115 VAC |
| Voltage Regulation - Line | 0.01 %, 3 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1320.00 | |
| 1 | $ 5865.54 | |||
Description
General part information
1368
0 ~ 6VDC, 0 ~ 30VDC, 0 ~ 30VDC Output Bench (AC to DC) Power Supply LCD 0 ~ 3A, 0 ~ 3A, 0 ~ 5A Output 210W Features Memory, Programmable, RS232 and USB Interface, Tracking
