AN100201-01H
ActiveSevskiy GmbH
RF ANT 868MHZ/915MHZ PCB U.FL.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN100201-01H
ActiveSevskiy GmbH
RF ANT 868MHZ/915MHZ PCB U.FL.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN100201-01H |
|---|---|
| Antenna Type | PCB Trace |
| Applications | RFID, ISM, Smart Meters, LP-WAN, IoT |
| Features | 180 mm |
| Features | Cable |
| Frequency (Center/Band) | 875 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 950 MHz |
| Frequency Range [Min] | 800 MHz |
| Gain | 1.1 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Bracket, Adhesive |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| Return Loss | -11 dB |
| RF Family/Standard | Lora, General ISM |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 1.79 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.29 | |
| 10 | $ 2.20 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.04 | |||
| 500 | $ 1.96 | |||
| 1000 | $ 1.89 | |||
| 5000 | $ 1.81 | |||
| 10000 | $ 1.75 | |||
| 50000 | $ 1.68 | |||
Description
General part information
AN100201-01H

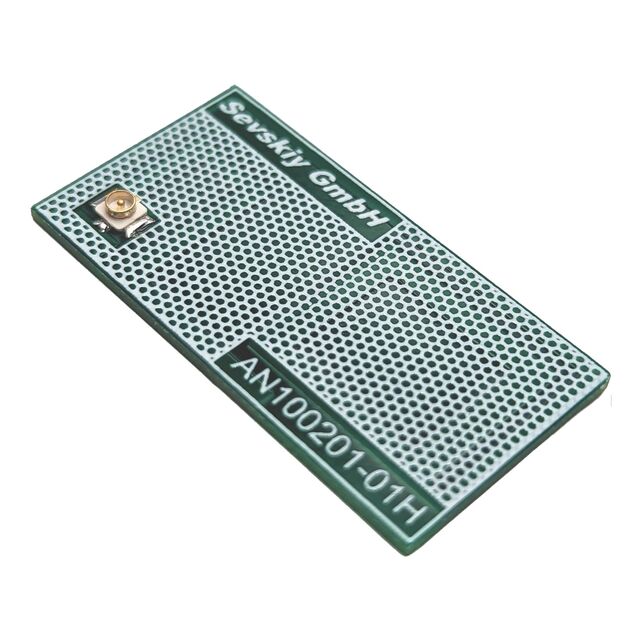

RF ANTENNA IoT, ISM, LP-WAN, RFID, Smart Meters PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive, Bracket
