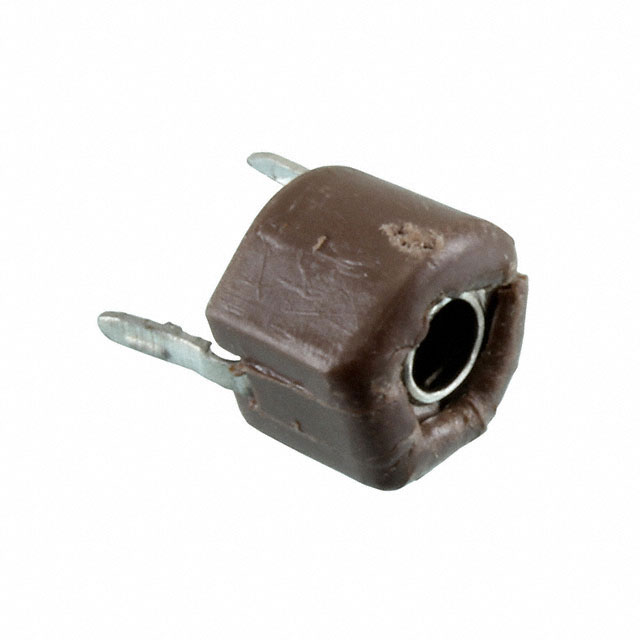

GKG50015
ActiveEW Electronics
CAP TRIMMER 10-50PF 100V TH
Deep-Dive with AI
Search across all available documentation for this part.
GKG50015
ActiveEW Electronics
CAP TRIMMER 10-50PF 100V TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GKG50015 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 50 pF |
| Capacitance Range [Min] | 10 pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Q @ Freq | 200, 1 MHz |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.07 | |
| 10 | $ 0.90 | |||
| 25 | $ 0.87 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.59 | |||
| 3000 | $ 0.54 | |||
Description
General part information
GKG50015
10 ~ 50pF Trimmer Capacitor 100 V Top Through Hole
