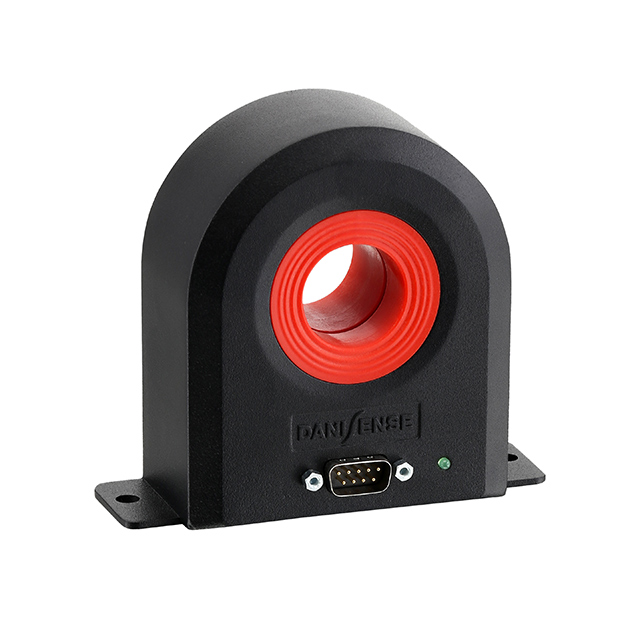

DS1000UB-10V
ActiveDanisense A/S
CURRENT TRANSDUCER 1000A
Deep-Dive with AI
Search across all available documentation for this part.
DS1000UB-10V
ActiveDanisense A/S
CURRENT TRANSDUCER 1000A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DS1000UB-10V |
|---|---|
| Current - Sensing | 1000 A |
| Current - Supply (Max) [Max] | 104 mA |
| For Measuring | AC/DC |
| Frequency [Max] | 300 kHz |
| Frequency [Min] | DC |
| Linearity | 0.0035 % |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensor Type | Flux Gate, Closed Loop |
| Voltage - Supply [Max] | 15.75 V |
| Voltage - Supply [Min] | -14.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1609.50 | |
Description
General part information
DS1000UB-10V
Current Sensor 1000A 1 Channel Flux Gate, Closed Loop Bidirectional Module, Single Pass Through
Documents
Technical documentation and resources
No documents available
