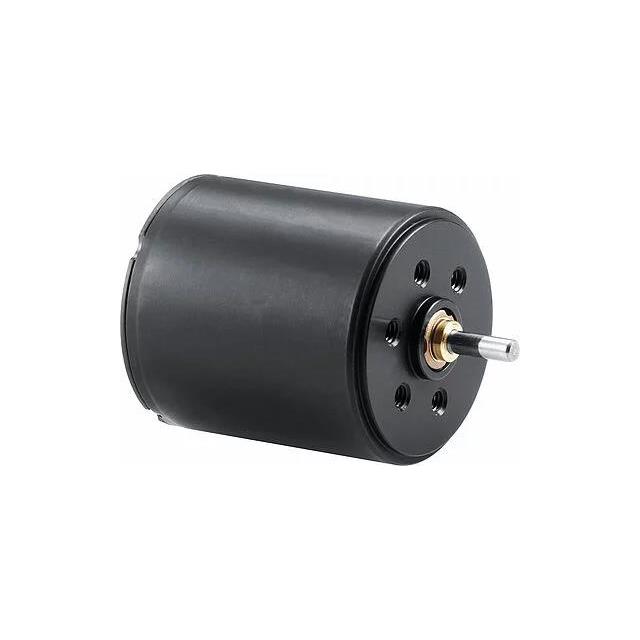

3000002930
ActiveFaulhaber
2224U012SR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3000002930
ActiveFaulhaber
2224U012SR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000002930 |
|---|---|
| Diameter - Shaft [diameter] | 0.137 in |
| Diameter - Shaft [diameter] | 3.5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 8.1 mm |
| Length - Shaft and Bearing [x] | 0.319 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 12 mm |
| Mounting Hole Spacing | 0.472 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 8.5 W |
| RPM | 4390 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 22 mm |
| Size / Dimension [diameter] | 0.866 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.948 oz-in |
| Torque - Rated (oz-in / mNm) | 6.7 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 122.60 | |
| 5 | $ 99.60 | |||
| 20 | $ 76.60 | |||
| 50 | $ 72.90 | |||
Description
General part information
3000002930
Brushed DC Motor Standard 4390 RPM 8.5W 12VDC
