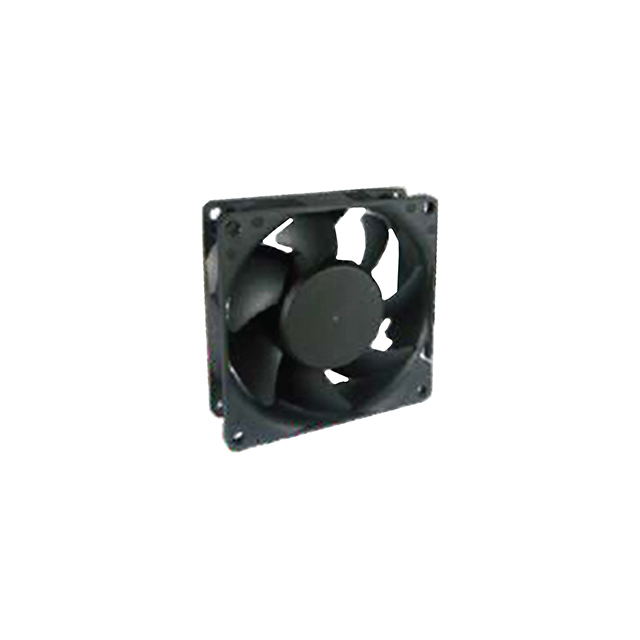

YW08025012BM
ActiveYS TECH USA
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YW08025012BM
ActiveYS TECH USA
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YW08025012BM |
|---|---|
| Air Flow | 37 CFM |
| Air Flow | 1.04 mł/min |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 30 dB(A) |
| Power (Watts) | 1.92 W |
| RPM | 2500 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 20.6 Pa |
| Static Pressure | 0.083 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.74 | |
| 10 | $ 6.01 | |||
| 25 | $ 5.74 | |||
| 50 | $ 5.54 | |||
| 100 | $ 5.36 | |||
| 250 | $ 5.12 | |||
| 500 | $ 4.94 | |||
| 1000 | $ 4.77 | |||
Description
General part information
YW08025012BM
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 37.0 CFM (1.04mł/min) 2 Wire Leads
