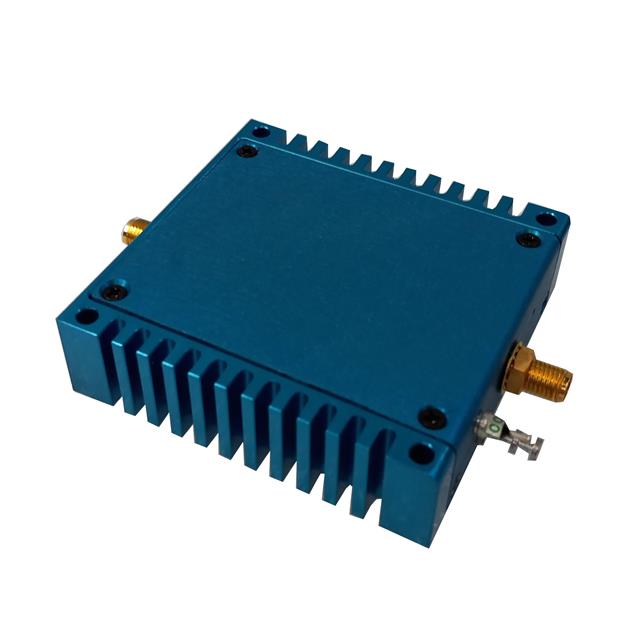

SPEC-A11AF
ActiveSpectrolite
IC RF AMP HDR 50KHZ-30MHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPEC-A11AF
ActiveSpectrolite
IC RF AMP HDR 50KHZ-30MHZ MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPEC-A11AF |
|---|---|
| Current - Supply | 400 mA |
| Frequency [Max] | 30 MHz |
| Frequency [Min] | 50 kHz |
| Gain | 15 dB |
| Mounting Type | Connector Mount |
| Noise Figure | 3.5 dB |
| P1dB | 25 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | High Dynamic Range |
| Supplier Device Package | Module |
| Voltage - Supply [Max] | 16 V |
| Voltage - Supply [Min] | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1969.11 | |
Description
General part information
SPEC-A11AF
RF Amplifier IC High Dynamic Range 50kHz ~ 30MHz Module
